JEE MAIN 2022
27-07-2022 - S2
Question
For a constant collector-emitter voltage of 8V, the collector current of a transistor reached to the value of 6 mA from 4 ma, whereas base current changed from 20 $\mu \mathrm{A}$ to 25 $\mu \mathrm{A}$ value. If transistor is in active state, small signal current gain (current amplification factor) will be :
Select the correct option:
A
240
B
400
C
0.0025
D
200
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

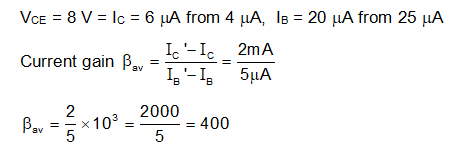

Solution
Solution Image
Question Tags
JEE Main
Physics
Easy
