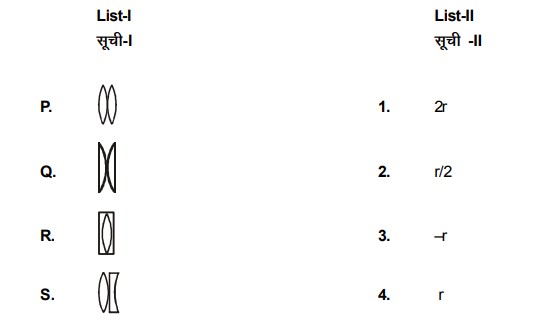

Four combinations of two thin lenses are given in List-I. The radius of curvature of all curved surface is r and the refractive index of all lenses is 1.5. Match lens combinations in List-I with their focal length in List-II and select the correct answer using the code given below the lists.

Select the correct option:

A

P-1, Q-2, R-3,S-4

B

P-2, Q-4, R-3, S-1

C

P-4-,Q-1, R-2,S-3

D

P-2, Q-1, R-3, S-4

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

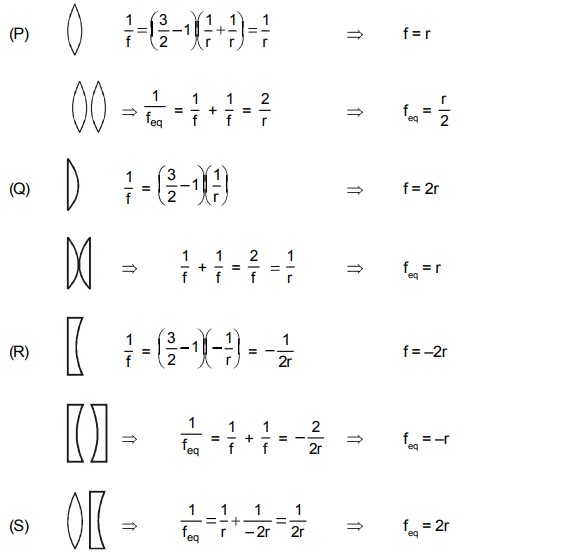

Solution

Question Tags

JEE Advance

Physics

Easy

Start Preparing for JEE with Competishun

Video Solution

BY competishun

Watch Solution from 1:48:50
