Four identical square metal sheets|Physics|JEE Advance2024

Competishun Header

JEE Advanced 2024

Paper-1 2024

Question

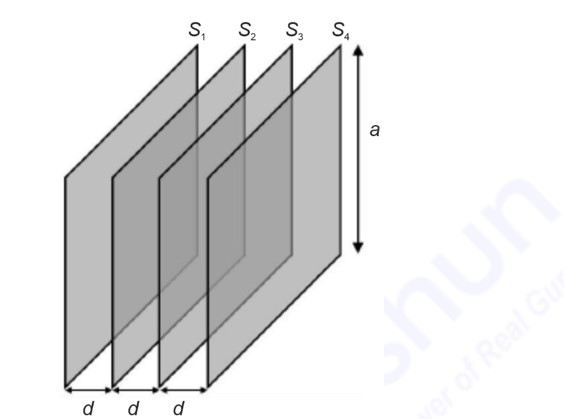

Four identical thin, square metal sheets, $S_1, S_2, S_3$, and $S_4$, each of side a are kept parallel to each other with equal distance $d(\ll a)$ between them, as shown in the figure. Let $C_0=\varepsilon_0 a^2 / d$, where $\varepsilon_0$ is the permittivity of free space.

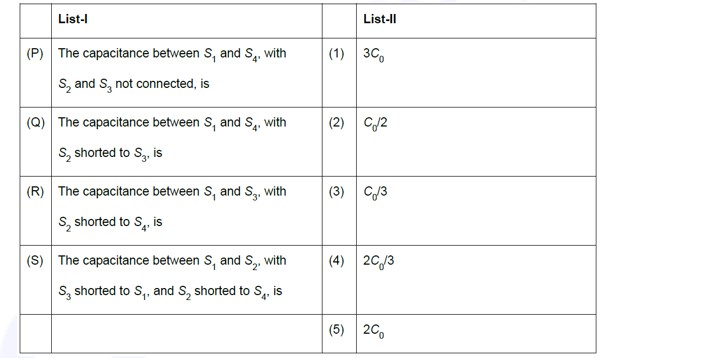

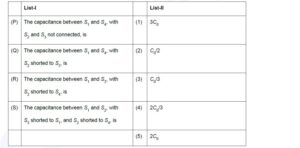

Match the quantities mentioned in List-I with their values in List-II and choose the correct option.

Select the correct option:

A

P → 3; Q → 2; R → 4; S → 5

B

P → 2; Q → 3; R → 2; S → 1

C

P → 3; Q → 2; R → 4; S → 1

D

P → 3; Q → 2; R → 2; S → 5

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

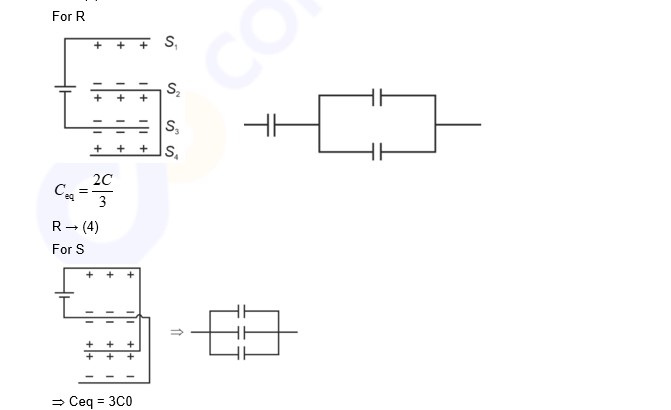

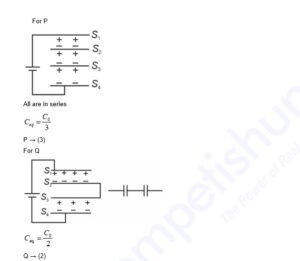

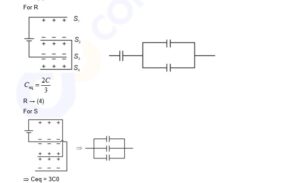

Solution

S → (1)

Question Tags

JEE Advance

Physics

Medium

Start Preparing for JEE with Competishun

Video Solution

BY competishun

Watch Solution

YouTube
