In the arrangement shown | Laws of Motion | JEE-MAIN 2022

Competishun Header

JEE MAIN 2022

26-06-22 S2

Question

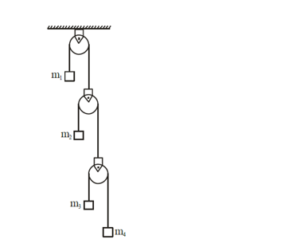

In the arrangement shown in figure $a_1 a_2, a_3$ and $a_4$ are the accelerations of masses $m_1 m_2 m_3$ and $m_4$ respectively. Which of the following relation is true for this arrangement?

Select the correct option:

A

$4 a_1+2 a_2+a_3+a_4=0$

B

$a_1+4 a_2+3 a_3+a_4=0$

C

$a_1+4 a_2+3 a_3+2 a_4=0$

D

$2 a_1+2 a_2+3 a_3+a_4=0$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

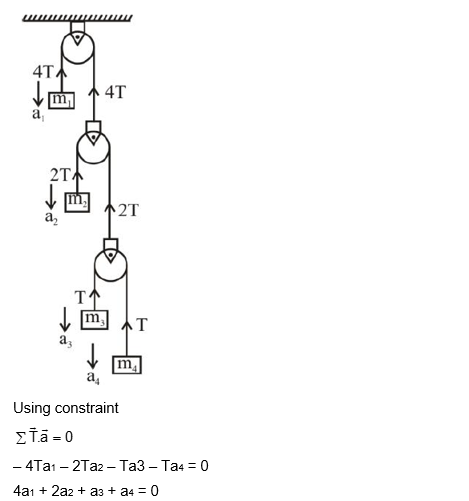

Solution

Question Tags

JEE Main

Physics

Easy
