JEE MAIN
01-02-2024 S1
Question

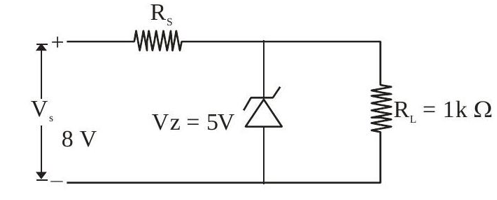

In the given circuit if the power rating of Zener diode is 10" " mW, the value of series resistance R_s to regulate the input unregulated supply is
Select the correct option:
A
$5 \mathrm{k} \Omega$
B
$10 \Omega$
C
$1 \mathrm{k} \Omega$
D
$10 \mathrm{k} \Omega$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

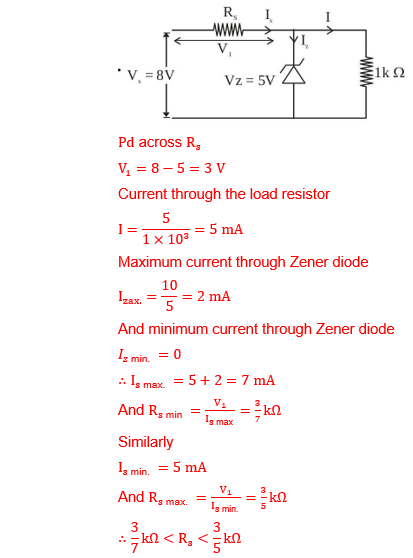

Solution
Solution Image
Question Tags
JEE Main
Physics
Medium
