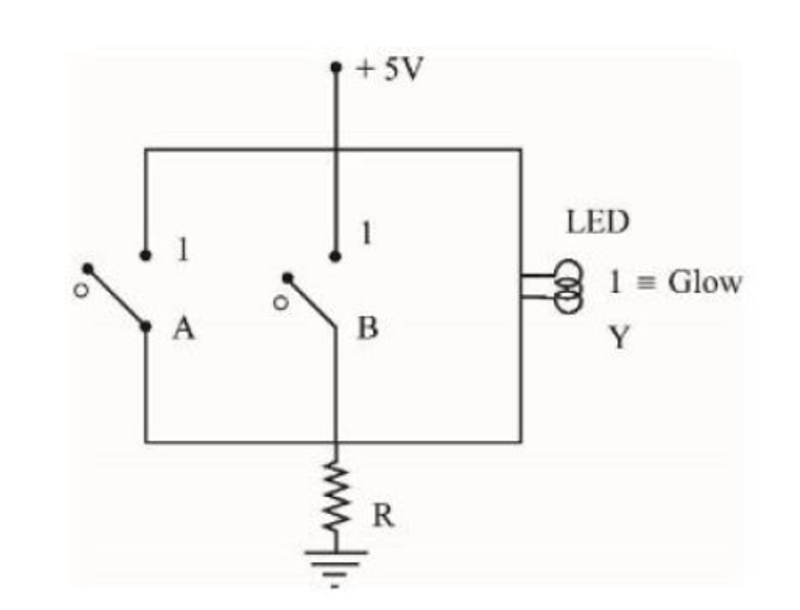

Name the logic gate equivalent to the diagram attached
Select the correct option:
A
OR
B
NOR
C
NAND
D
AND
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
Solution
Circuit is closed when neither A nor B is closed current flows for A = 0 B = 0 when either or both of A & B is closed we get current bypass from switch
Hence it is “NOR” gate
