JEE Advance 2017
Paper-2
Question
PARGRAPH - I

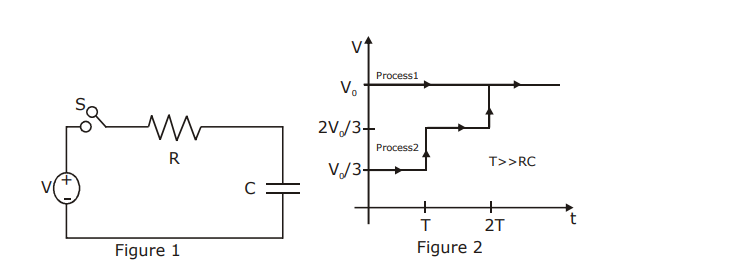

Consider a simple RC circuit as shown in figure 1.
Process-1: In the circuit the switch S is closed at $\mathrm{t}=0$ and the capcitor is fully charged to voltage $\mathrm{V}_0$ (i.e., charging continues for time $\mathrm{T} \gg \mathrm{RC}$ ). In the process some dissipation ( $\mathrm{E}_{\mathrm{D}}$ ) occurs across the resistance $R$. The amount of energy finally stored in the fully charged capacitor is $E_C$.
Process-2: In a different process the voltage is first set set to $\frac{\mathrm{V}_0}{3}$ and maintained for a charging time $T \gg R C$. Then the voltage is raised to $\frac{2 v_0}{3}$ without discharging the capacitor and again maintained for a time $\mathrm{T} \gg \mathrm{RC}$. The process is repeated one more time by raising the voltage to $\mathrm{V}_0$ and the capacitor is charged to the same final voltage $\mathrm{V}_0$ as in process 1. These two processes are depicted in figure 2

In process 2 , total energy dissipated across the resistance $\mathrm{E}_{\mathrm{D}}$ is -
Select the correct option:
A
$E_D=3\left(\frac{1}{2} C V_0^2\right)$
B
$\mathrm{E}_{\mathrm{D}}=\frac{1}{3}\left(\frac{1}{2} \mathrm{CV}_0^2\right)$
C
$\mathrm{E}_{\mathrm{D}}=3 \mathrm{CV}_0{ }^2$
D
$\mathrm{E}_{\mathrm{D}}=\frac{1}{2} \mathrm{CV}_0^2$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

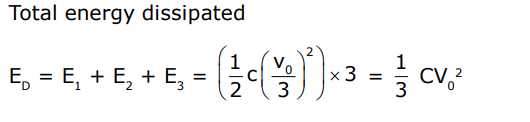

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
