JEE MAIN_2026
05-04-26_S1
Question

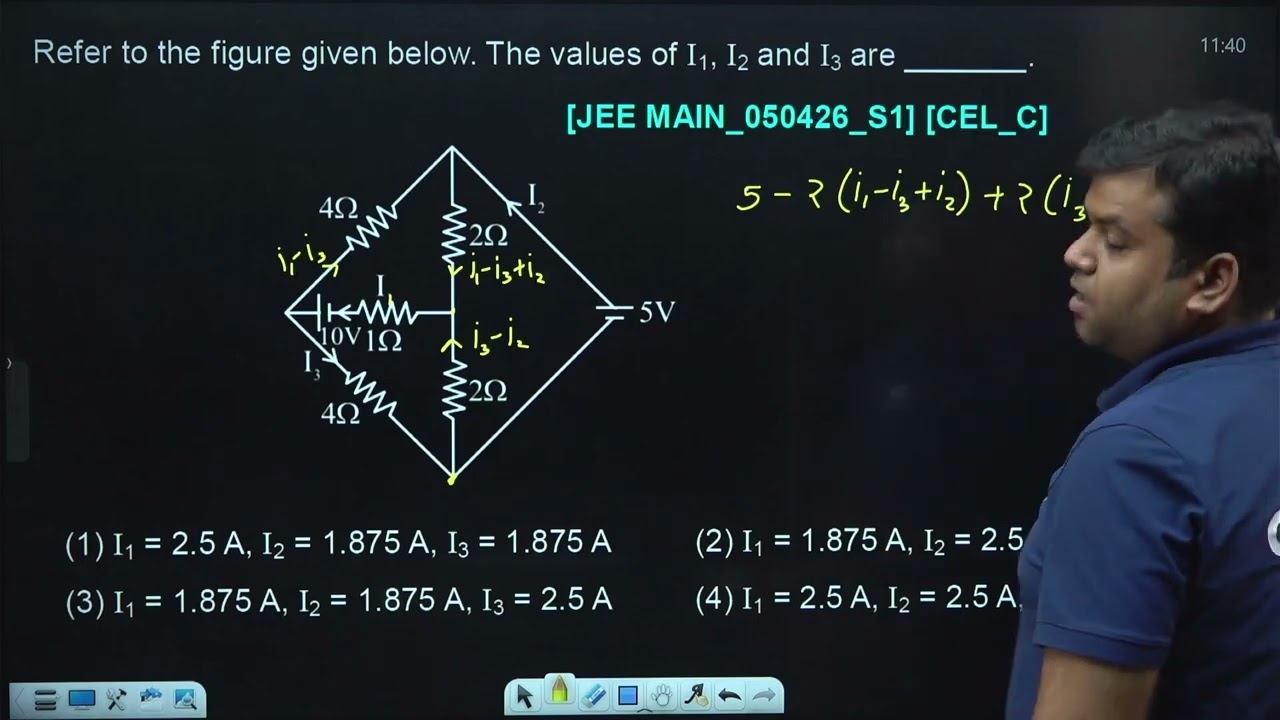

Refer to the figure given below. The values of $\mathrm{I}_1, \mathrm{I}_2$ and $\mathrm{I}_3$ are $\_\_\_\_$ .
Question Image
Select the correct option:
A
$\mathrm{I}_1=2.5 \mathrm{~A}, \mathrm{I}_2=1.875 \mathrm{~A}, \mathrm{I}_3=1.875 \mathrm{~A}$
B
$\mathrm{I}_1=1.875 \mathrm{~A}, \mathrm{I}_2=2.5 \mathrm{~A}, \mathrm{I}_3=1.875 \mathrm{~A}$
C
$\mathrm{I}_1=1.875 \mathrm{~A}, \mathrm{I}_2=1.875 \mathrm{~A}, \mathrm{I}_3=2.5 \mathrm{~A}$
D
$\mathrm{I}_1=2.5 \mathrm{~A}, \mathrm{I}_2=2.5 \mathrm{~A}, \mathrm{I}_3=1.875 \mathrm{~A}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

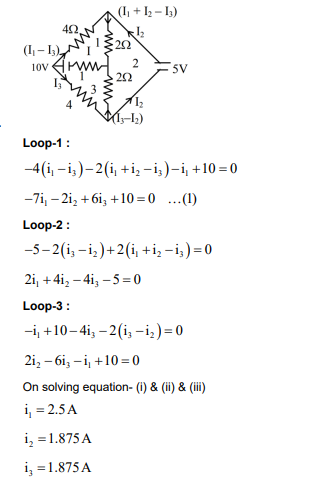

Solution
Solution Image
Question Tags
JEE Main
Physics
Hard
