Question

Rods $x$ and $y$ of equal dimensions but of different materials are joined as shown in figure. Temperatures of end points $A$ and $F$ are maintained at $100^{\circ} \mathrm{C}$ and $40^{\circ} \mathrm{C}$ respectively. Given the thermal conductivity of $\operatorname{rod} x$ is three times of that of $\operatorname{rod} y$, the temperature at junction points $B$ and $E$ are (close to):

Select the correct option:

A

89 °C and 73 °C respectively

B

80 °C and 60 °C respectively

C

80 °C and 70 °C respectively

D

60 °C and 45 °C respectively

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

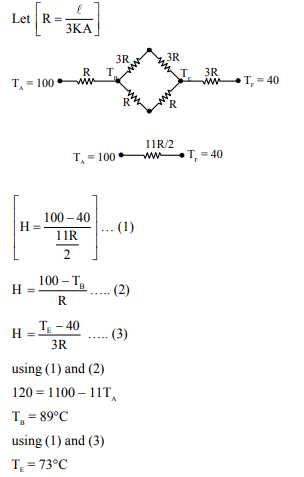

Solution

Question Tags

JEE Main

Physics

Medium

Start Preparing for JEE with Competishun

Video Solution

BY competishun

Watch Solution

YouTube
