JEE MAIN 2019

11-01-2019 S2

Question

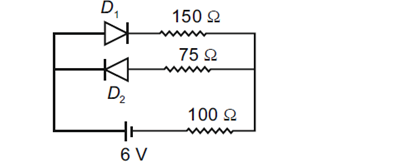

The circuit shown below contains two ideal diodes, each with a forward resistance of $50 \Omega$. If the battery voltag is 6 V , the current through the $100 \Omega$ resistance (in amperes) is:

Select the correct option:

A

0.036

B

0.020

C

0.030

D

0.027

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution

Question Tags

JEE Main

Physics

Medium
