Question

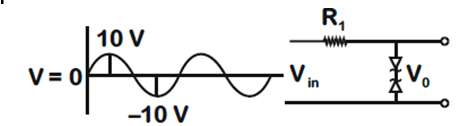

Take the breakdown voltage of the zener diode used in the given circuit as 6 V. For the input voltage shown in figure below, the time variation of the output voltage is

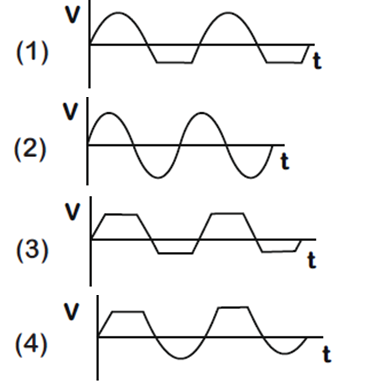

Options

A

B

C

D

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution

Zener diode works in reverse bias and potential drop across it remains constant.
