JEE MAIN 2021
26-02-2021 S1
Question

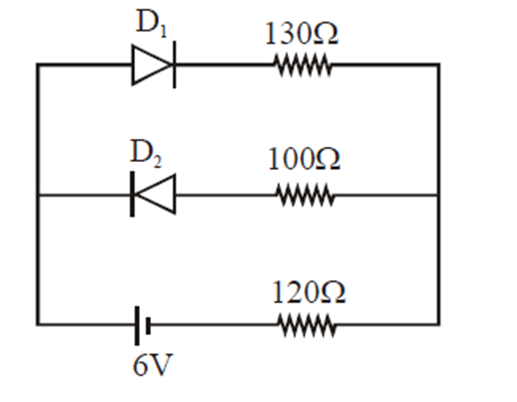

The circuit contains two diodes each with a forward resistance of $50 \Omega$ and with infinite reverse resistance. If the battery voltage is 6 V , the current through the $120 \Omega$ resistance is_ mA .
Question Image
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

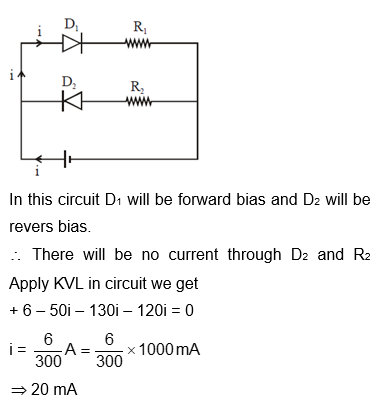

Solution
Solution Image
Question Tags
JEE Main
Physics
Easy
