The given graph / data I, II | Chemistry | JEE ADVANCED 2012

Competishun Header

JEE Advance 2012

paper 2

Multiple correct answers - Select all that apply

Question

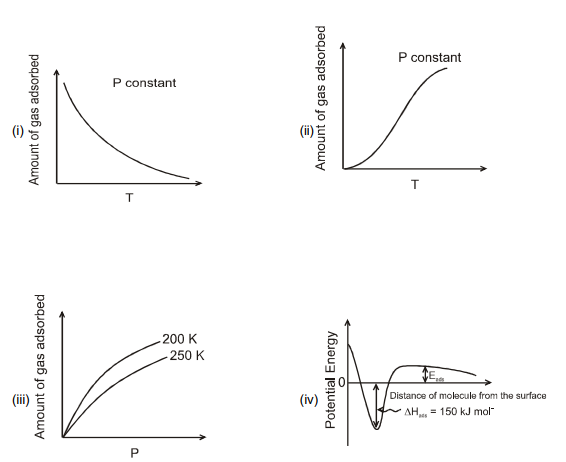

The given graph / data I, II, III and IV represent general trends observed for different physisorption and chemisorption processes under mild conditions of temperature and pressure. Which of the following choice (s) about I, II, III and IV is (are) correct

Select ALL correct options:

A

I is physisorption and II is chemisorption

B

I is physisorption and III is chemisorption

C

IV is chemisorption and II is chemisorption

D

IV is chemisorption and III is chemisorption

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

⚠ Partially correct. Some answers are missing.

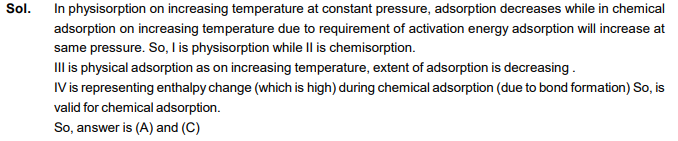

Solution

Question Tags

JEE Advance

Chemistry

Easy
