Question

The magnetic field at the center of current carrying circular loop is $\mathrm{B}_1$. The magnetic field at a distance of $\sqrt{3}$ times radius of the given circular loop from the center on its axis is $B_2$. The value of $B_1 / B_2$ will be

Select the correct option:

A

9 : 1

B

$12: \sqrt{5}$

C

8 : 1

D

$5: \sqrt{3}$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

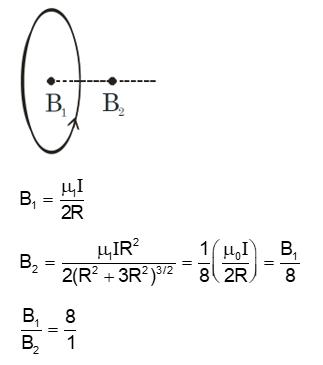

Solution

Question Tags

JEE Main

Physics

Easy
