JEE Advance 2021

Paper 1

Question

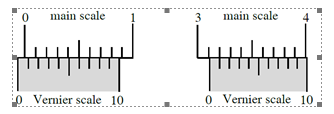

The smallest division on the main scale of a Vernier calipers is 0.1 cm . Ten divisions of the Vernier scale correspond to nine divisions of the main scale. The figure below on the left shows the reading of this calipers with no gap between its two jaws. The figure on the right shows the reading with a solid sphere held between the jaws. The correct diameter of the sphere is

Select the correct option:

A

3.07 cm

B

3.11 cm

C

3.15 cm

D

3.17 cm

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

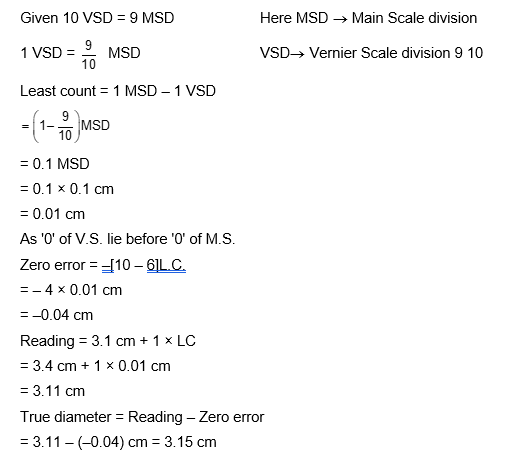

Solution

Question Tags

JEE Advance

Physics

Easy
