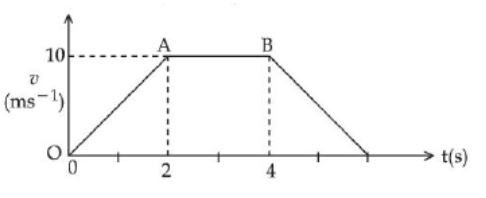

The velocity-time graph of an object moving along a straight line is shown in figure. What is the distance covered by the object between $t=0$ to $t=4 \mathrm{~s}$ ?
Select the correct option:
A
11 m
B
30 m
C
10 m
D
13
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
Solution
Distance $=$ Area under $\mathrm{vv} / \mathrm{s}$ t graph
Distance $=\frac{1}{2} \times 2 \times 10+2 \times 10=30 \mathrm{~m}$
