Two circuits are shown | Alternating Current | JEE-MAIN 2021

Competishun Header

JEE MAIN 2021

25-07-21 S2

Question

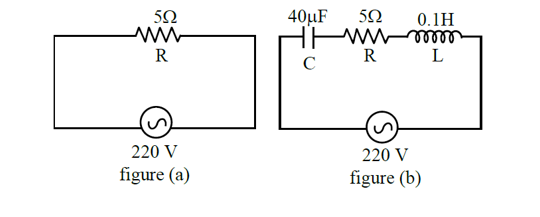

Two circuits are shown in the figure (a) & (b). At a frequency of ________rad/s the average power dissipated in one cycle will be same in both the circuits.

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

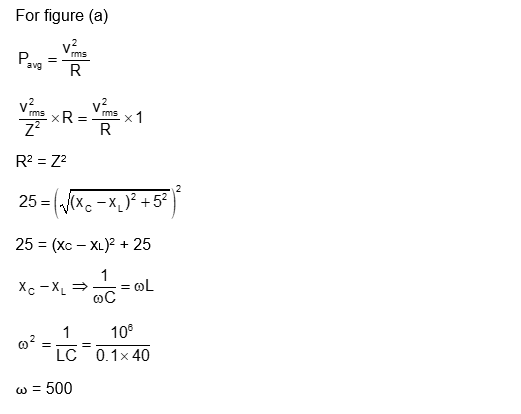

Solution

Question Tags

JEE Main

Physics

Easy
