Question

Two long parallel wires carrying currents 8A and 15 A in opposite directions are placed at a distance of 7 cm from each other. A point P is at equidistant from both the wires such that the lines joining the point P to the wires are perpendicular to each other. The magnitude of magnetic field at P is ____ ×$10^{-6} \mathrm{~T}$. (Given : $\sqrt{2}$ = 1.4)

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

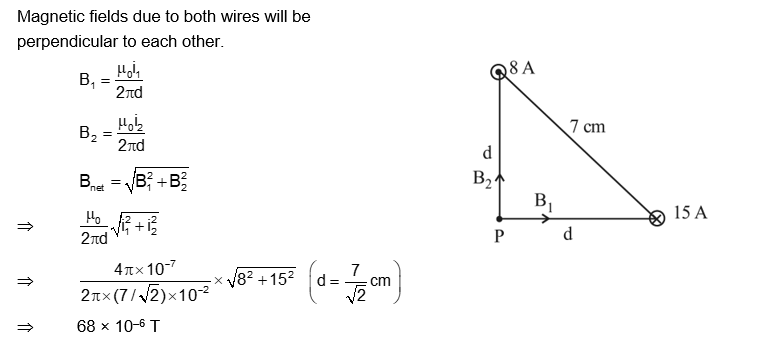

Solution

Question Tags

JEE Main

Physics

Medium
