Question

Two metallic plates form a parallel plate capacitor. The distance between the plates is ‘d’. A metal sheet of thickness $\frac{d}{2}$ and of area equal to area of each plate is introduced between the plates. What will be the ratio of the new capacitance to the original capacitance of the capacitor?

Select the correct option:

A

2:1

B

1:2

C

1:4

D

4:1

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

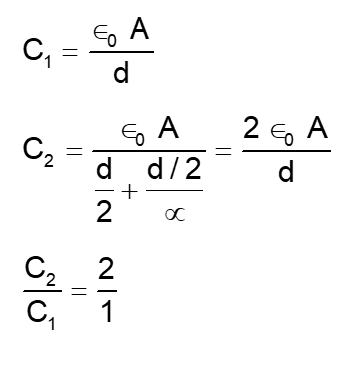

Solution

Question Tags

JEE Main

Physics

Easy
