Two parallel plate capacitors. |CAPACITANCE | JEE-MAIN 2022

Competishun Header

JEE MAIN 2022

25-07-2022 S2

Question

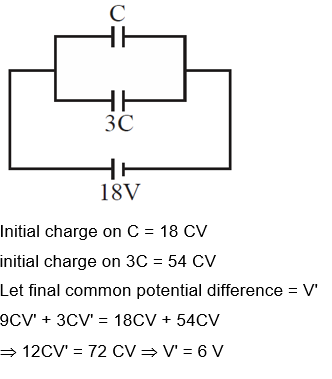

Two parallel plate capacitors of capacity C and 3C are connected in parallel combination and charged to a potential difference 18V. The battery is then disconnected and the space between the plates of the capacitor of capacity C is completely filled with a material of dielectric constant 9. The final potential difference across the combination of capacitors will be _______ V

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution

Question Tags

JEE Main

Physics

Medium
