JEE MAIN 2023

13-04-23 S1

Question

When a resistance of $5 \Omega$ is shunted with a moving coil galvanometer, it shows a fullscale deflection for a current of 250 mA , however when $1050 \Omega$ resistance is connected with it in series, it gives full scale deflection for 25 volt. The resistance of galvanometer is $\_\_\_\_$ $\Omega$.

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

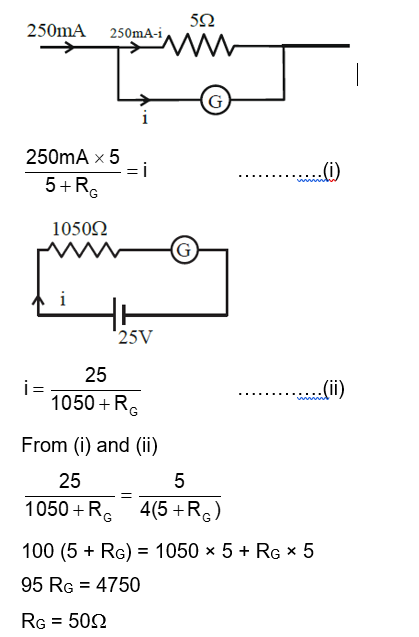

Solution

Question Tags

JEE Main

Physics

Medium

Start Preparing for JEE with Competishun

Video Solution

BY competishun

Watch Solution

YouTube
